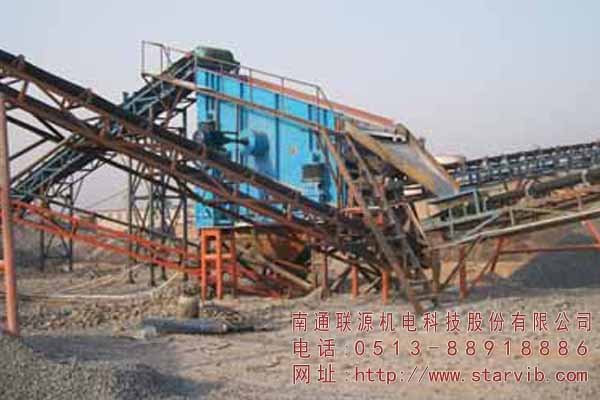

煤用單軸振動篩簡介
煤用單軸振動篩運動軌跡為圓，可供選煤、選礦、電力、建筑等部門對中等粒度物料進行分級。篩機結構簡單、維修方便、作業可靠，篩分效率高，透篩性好。
技術參數
型號 | 篩 面 | 給料粒度 | 處理量(t/h) | 振次(min-1) | 雙振幅 | 電動機 | 外型尺寸長×寬×高 | 總量 | 每支點工作動負荷 | zui大動負荷 | |||||||
現用 | 層數 | 面積(m2) | 傾角(度) | 篩孔尺寸 | 結構 | 型號 | 功率 | 給料端(N) | 排料端(N) | 給料端(N) | 排料端(N) | ||||||
DDM1235 | 1 | 4 | 17.5 | 50-100 | 編織 | ≤400 | 150-210 | 920 | 6 | Y132S-4 | 5.5 | 3338×2116×2034 | 2113 | ±168 | ±168 | ±840 | ±840 |
DDM1556 | 1 | 8 | 15 | 25-50 | 沖孔 | ≤400 | 400 | 920 | 6-8 | Y160M-4 | 11 | 5409×2461×2256 | 3376 | ±616 | ±616 | ±3080 | ±3080 |
2DDM1556 | 2 | 8 | 15 | 上25-100下6-25 | 上沖孔下編織 | ≤400 | 上90-450下30-90 | 1000 | 6 | Y180M-4 | 18.5 | 5500×2658×2742 | 5096 | ±870 | ±870 | ±4350 | ±4350 |
DDM1740 | 1 | 7 | 17.5 | 50-100 | 沖孔 | ≤400 | 240-360 | 920 | 5-7 | Y132M-4 | 7.5 | 3815×2709×2557 | 3092 | ±282 | ±282 | ±1410 | ±1410 |
DDM1756 | 1 | 9.5 | 15 | 25-50 | 沖孔 | ≤400 | 270-540 | 920 | 5-7 | Y160L-4 | 15 | 5409×2804×2289 | 3995 | ±813 | ±813 | ±4065 | ±4065 |
DDM2056 | 1 | 11 | 20 | 25-125 | 沖孔 | ≤400 | 300-1100 | 920 | 6-8 | Y180M-4 | 18.5 | 5262×3122×2667 | 4599 | ±870 | ±870 | ±4350 | ±4350 |
DDM1235 | 2 | 11 | 15 | 上25-100下6-25 | 沖孔 | ≤400 | 120-600 40-120 | 1000 | 6-8 | Y180M-4 | 18.5 | 5500×3158×2742 | 5650 | ±870 | ±870 | ±4350 | ±4350 |
2DDM2056 | 1 | 4 | 17.5 | 50-100 | 沖孔 | ≤400 | 150-210 | 920 | 6 | Y132S-4 | 5.5 | 3338×2229×1853 | 2235 | ±391.6 | ±391.6 | ±1958 | ±1958 |
ZDM1556 | 1 | 8 | 15 | 25-50 | 沖孔 | ≤400 | 225-450 | 920 | 6-8 | Y160M-4 | 11 | 5410×2558×2256 | 3611 | ±1480 | ±1480 | ±7400 | ±7400 |
2ZDM1556 | 2 | 8 | 15 | 上25-50下6-25 | 上沖孔下編織 | ≤400 | 30-300 | 1000 | 6-8 | Y180M-4 | 18.5 | 5490×2870×2988 | 5347 | ±995 | ±995 | ±4975 | ±4975 |
ZDM1740 | 1 | 7 | 17.5 | 50-100 | 沖孔 | ≤400 | 270-400 | 920 | 5-7 | Y132M-4 | 7.5 | 3815×2741×2084 | 3224 | ±646 | ±646 | ±3230 | ±3230 |
ZDM1756 | 1 | 9.5 | 15 | 25-50 | 沖孔 | ≤400 | 270-540 | 920 | 5-7 | Y160L-4 | 15 | 5410×2888×2295 | 4027 | ±156 | ±156 | ±780 | ±780 |
ZDM2056 | 1 | 11 | 17.5 | 13-125 | 沖孔 | ≤400 | 100-1000 | 920 | 6-8 | Y180M-4 | 18.5 | 5341×3386×2795 | 5991 | ±1010 | ±1010 | ±5050 | ±5050 |
2ZDM2056 | 2 | 11 | 15 | 上25-100下6-25 | 上沖孔下編織 | ≤400 | 120-600 | 1000 | 6-8 | Y180M-4 | 18.5 | 5490×3370×2988 | 5891 | ±1010 | ±1010 | ±5050 | ±5050 |
